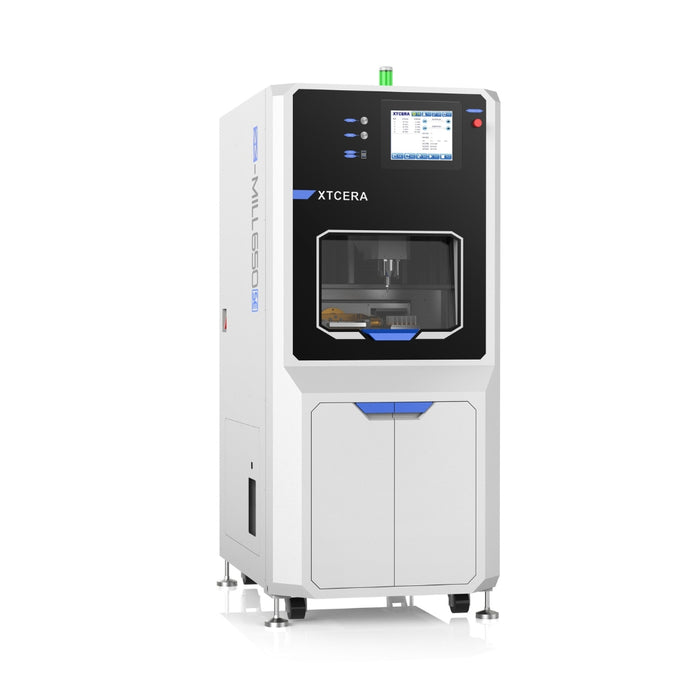

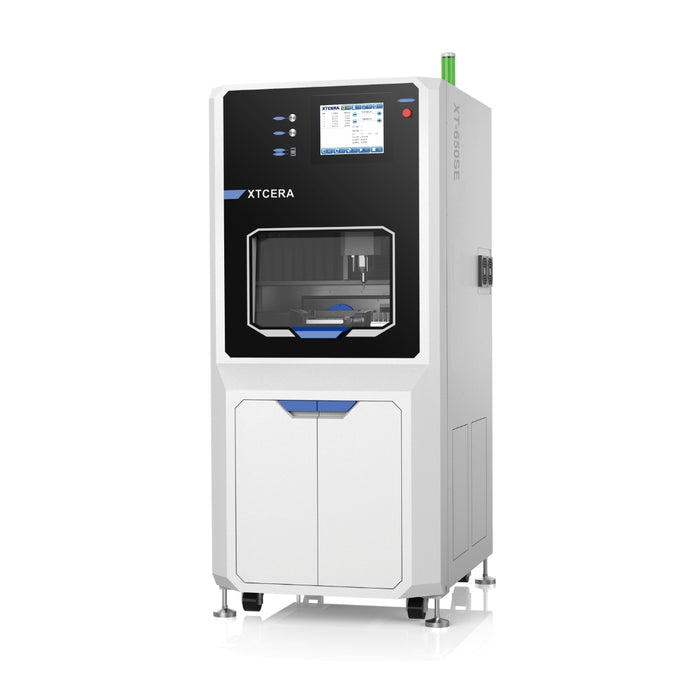

XTcera X-MILL 650 SE

The X-MILL 650 SE is a high-performance 5-axis wet milling machine designed for precision dental CAD/CAM production. It features automatic bur changing, a 36-bur capacity, 4 kW spindle power, and support for a wide range of dental materials including titanium, PMMA, resin, glass ceramic, wax, and PEEK.

Specification Details
Model X-MILL 650 SE
Machine Type 5-Axis Dental Milling Machine
Milling Mode Wet Milling
Dimensions 820 × 1170 × 1830 mm
Net Weight 970 kg
Number of Axes 5
Milling Range XYZ: 340 × 160 × 180 mm
A Axis 360°
B Axis ±40°
Maximum Speed 40,000 RPM
Input Voltage AC 220V
Spindle Power 4 kW
Spindle Cooling Air Cooling
Maximum Feed Rate XYZ: 6,000 mm/min
Bur Capacity 36
Bur Changing Automatic

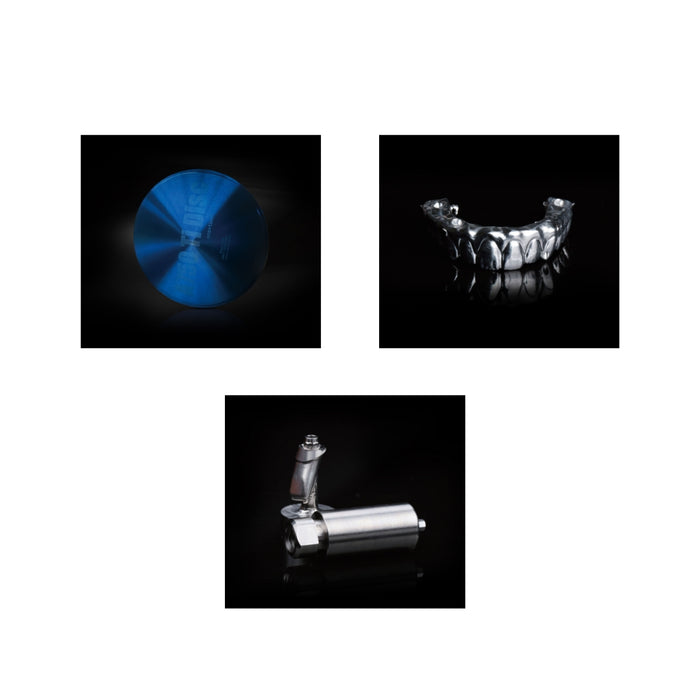

Compatible Materials Titanium, Premill Abutment, Resin, PMMA, Glass Ceramic, Wax, PEEK
Milling Time – Crown 30 min
Milling Time – Abutment 50 min
Milling Time – Implant Bar 2 hours

1 x X-MILL 650 SE
