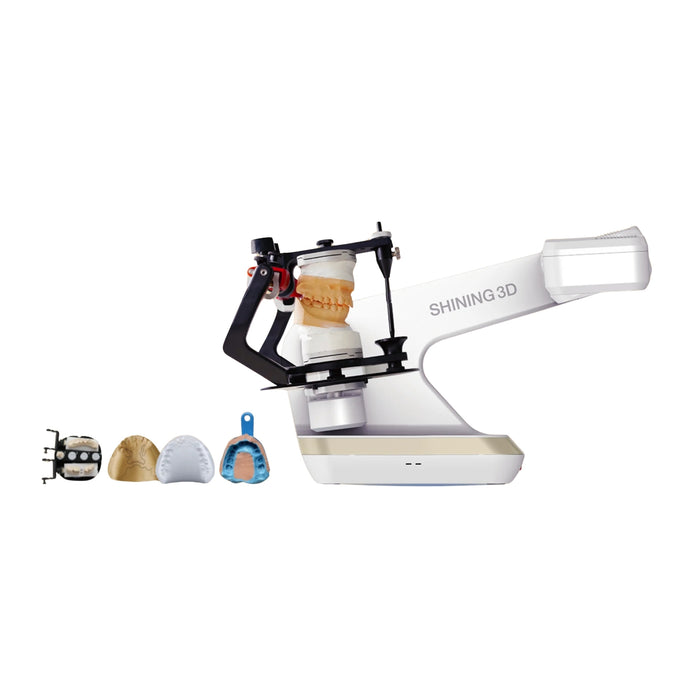

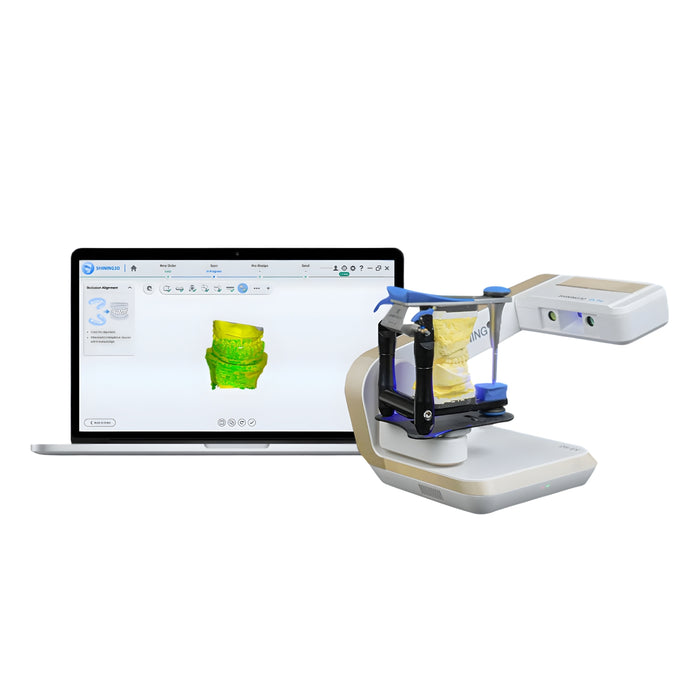

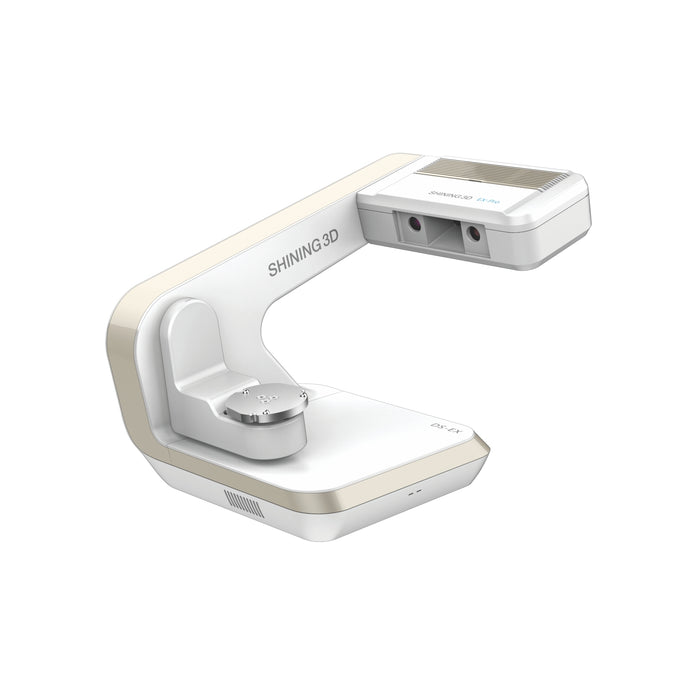

Shining 3D Auto Scan-DS-EX C Pro Dental Lab 3D Scanner

The Shining 3D AutoScan-DS-EX C Pro is an advanced dental laboratory 3D scanner offering ultra-fast, high-precision, and full-color scanning with exceptional detail. Designed for modern dental labs, it delivers reliable data for crowns, bridges, implants, dentures, bars, and orthodontic models. Equipped with intelligent scanning modes, high-resolution cameras, and upgraded algorithms, it ensures smooth workflow integration, improved productivity, and superior scan accuracy for digital dentistry professionals.

• Scanner Type: Desktop Dental 3D Lab Scanner
• Scanning Technology: Structured Blue Light
• Accuracy: Up to 10 microns (high precision)
• Texture/Color Scanning: Yes (Full Color)
• Cameras: Dual high-resolution cameras
• Scan Speed: Fast scanning (optimized for lab productivity)
• Output Format: STL / OBJ

1. Preparation
• Place the Shining 3D AutoScan-DS-EX C Pro Dental Lab 3D Scanner on a stable, level surface with adequate ventilation.
• Connect the power supply and USB 3.0 cable to a compatible PC that meets the required system specifications.
• Install and launch the scanner software, and confirm exocad integration if needed.

2. Calibration
• Attach the calibration plate or follow the on-screen calibration instructions provided by the software.
• Ensure the scanner lens and tray area are clean and free from dust or debris before starting the scan.

3. Scanning Workflow
• Select the required scan mode in the software (Full Arch, Tray, Die, Implant, or RPD).
• Place the dental model, impression, or scan body on the scanning tray, using free die placement if required.
• Start the scan and monitor the live preview to confirm proper alignment and capture.

4. Image Capture
• Use the scanner’s intelligent scanning functions to capture high-resolution color texture and gingival details for accurate dental models.

5. Post-Scan Processing
• Review the scanned mesh and texture within the software.
• Trim unnecessary areas and verify margin accuracy before exporting the files.
• Export the final scan in STL, PLY, or OBJ format for CAD design or 3D printing workflows.

6. Maintenance
• Clean the optical components and scanning tray regularly using a lint-free cloth and approved cleaning solution.
• Power down the scanner properly and cover the unit when not in use to prevent dust buildup.
• Perform regular software and firmware updates as recommended by the manufacturer.

Shining 3D Auto Scanner

1-year warranty from the date of purchase.
