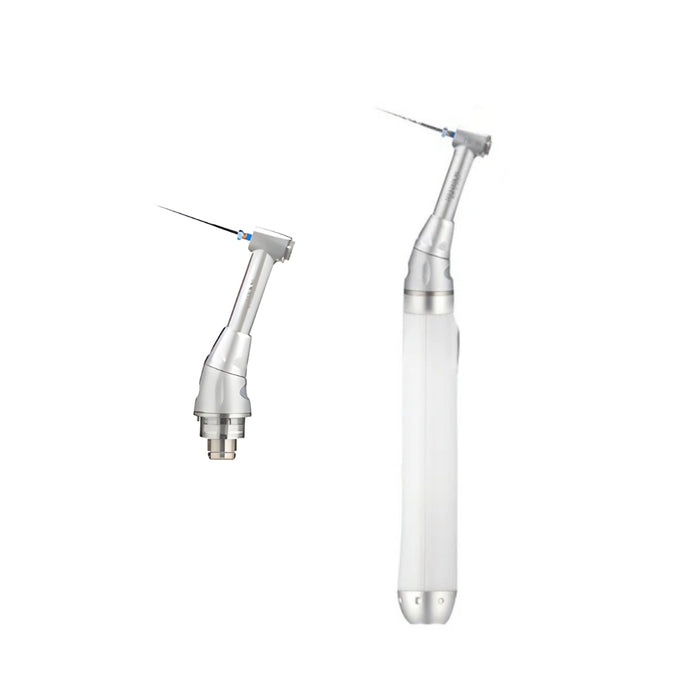

Saeshin Endo Cube Dental Endomotor

Saeshin Endo Cube Endomotor is a compact, high-precision endodontic system designed for smooth, safe, and controlled root canal preparation. Built with Saeshin’s trusted Korean engineering, the unit provides accurate torque control, stable rotation, and user-friendly operation for dental professionals. With a torque range of 0.6 to 5.2 N·cm, multiple gear ratios (1:1, 4:1, 10:1, 16:1, 20:1), and a lightweight ergonomic handpiece, the Endo Cube ensures efficient shaping with enhanced patient comfort. Its powerful battery provides up to 5 hours of continuous use, making it highly reliable for busy clinics.

Torque & Gear System
• Torque Control: 0.6 – 5.2 N•cm
• Gear Ratios: 1:1, 4:1, 10:1, 16:1, 20:1

Control Box
• Input: DC 20V, 1.5A
• Output: DC 6V
• Charging Time: Approx. 5 hours
• Dimensions: 110 × 196 × 139 mm
• Weight: 582g

Handpiece
• Weight: 35g
• Speed (RPM): 812 RPM
• Max Torque: 5.2 N•cm

Micro Motor EP
• Input: DC 6V
• Weight: 116g

Operation Options
• Battery-powered
• Adapter-powered
.

1. Preparation
Ensure the handpiece is fully charged before use. Connect the handpiece to the apex locator if required.

2. Assembly
Attach the 6:1 mini contra-angle securely to the handpiece. Insert the appropriate endodontic file into the contra-angle head.

3. Power On
Press the power button to switch on the device. Select the required working mode (Forward, Reverse, Reciprocating, or ATR).

4. Adjust Speed and Torque
Set the speed between 100–1500 r/min and adjust the torque between 0.4–4.2 N·cm according to the clinical procedure.

5. Set Reciprocating Angle (If Required)
Adjust the reciprocating angle between 20° and 400° in 10° increments for precise control.

6. Operation
Position the handpiece at the treatment site and operate with gentle pressure. Use the 360° rotatable contra-angle for improved access and maneuverability.

7. Safety Monitoring

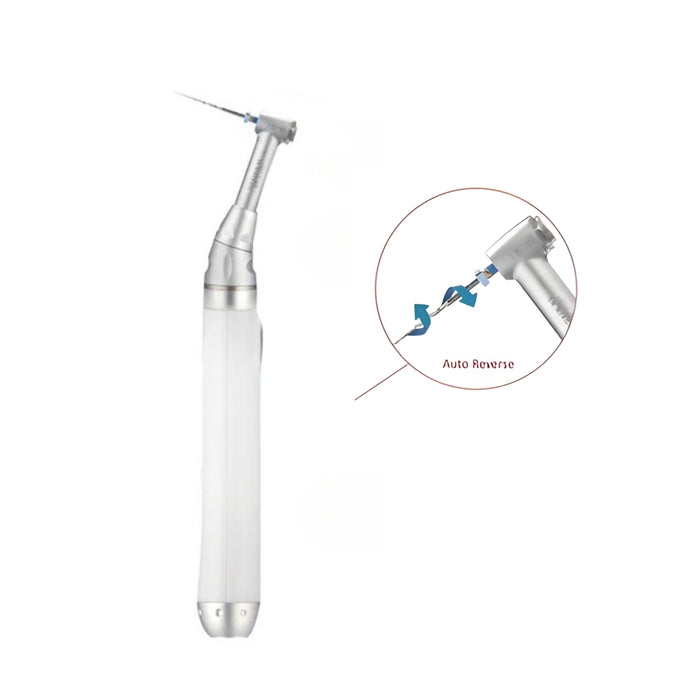

Monitor torque and speed during operation. In ATR mode, the file will reciprocate automatically once preset torque is reached to reduce the risk of file separation.

8. After Use
Turn off the handpiece, remove the contra-angle, and clean and sterilize the components according to manufacturer guidelines.

9. Storage
Store the device in a clean, dry place and ensure the handpiece is adequately charged before storage.

• 1 × Handpiece Head ACL (B) 42 EP (16:1)

1-year warranty from the date of purchase.
