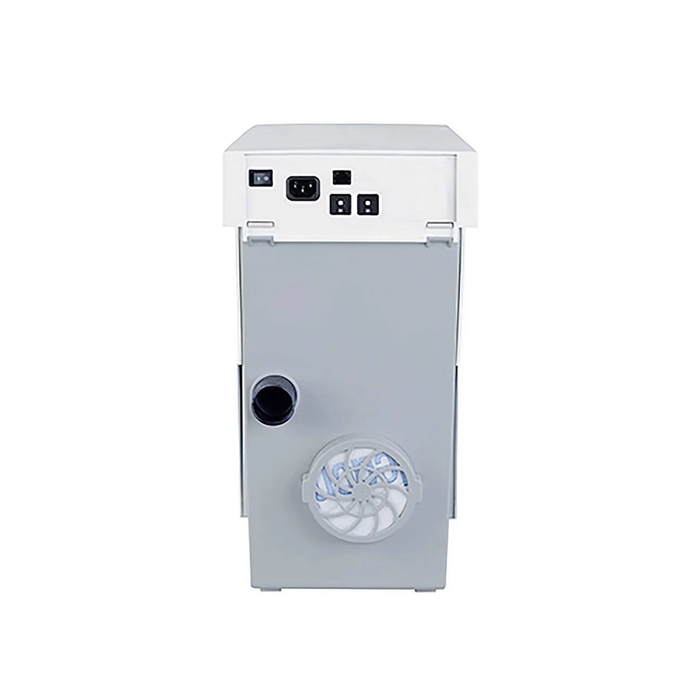

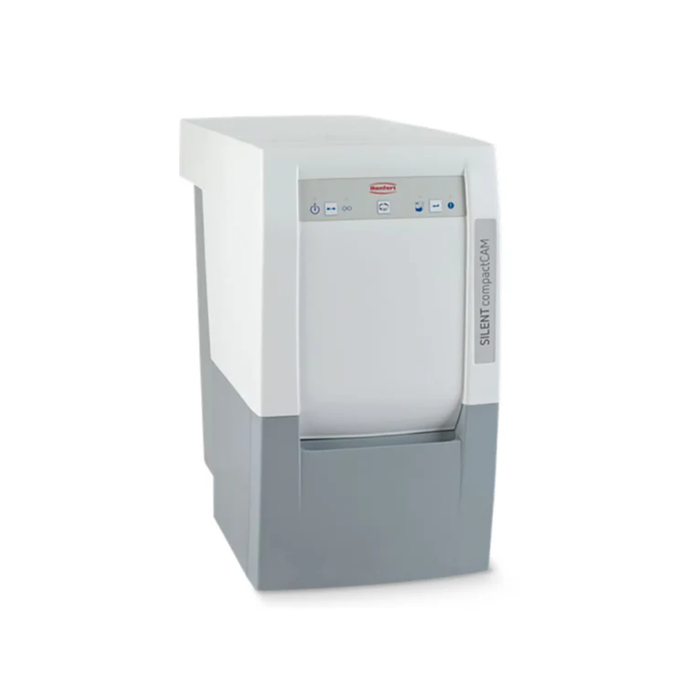

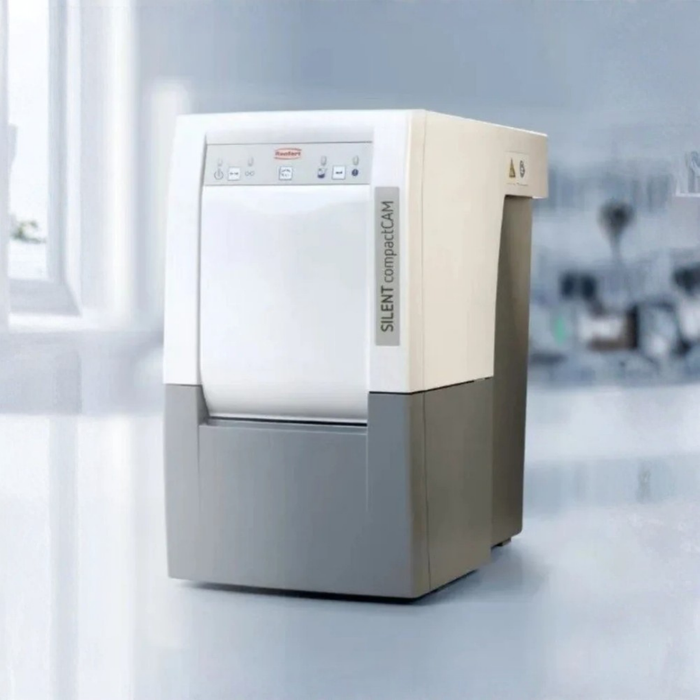

Renfert SILENT Compact CAM Extraction Unit – Dental CAM Systems

Renfert SILENT Compact CAM Extraction Unit is a high‑performance, intelligent dust‑extraction solution designed specifically for CAD/CAM dental milling setups. It offers bidirectional communication with CAM machines via PLC interface, enabling automated control and optimized workflow integration. With exceptionally low operational noise (max 55 dB(A)), this unit maintains a quiet lab environment while delivering powerful suction performance.

• Permissible Mains Voltage: 230–240 V | 220 V | 120 V | 100 V
• Permissible Mains Frequency: 50 / 60 Hz
• Power Consumption:
• 490 W (230 V)
• 460 W (220 V)
• 480 W (120 V)
• 480 W (100 V)
• Maximum Volume Flow: 2500 L/min (1.47 ft³/s)
• Maximum Depression (Vacuum): 219 hPa (3.2 psi)
• Filter Quality: Class M according to EN 60335-2-69
• CAM Interface: RJ45 socket
• Number of Suction Hoses: 1
• Noise Level (Spl LpA at max volume flow): 55 dB(A)
• Weight (empty): ~13.2 kg (~29.1 lbs)
• Dimensions (W × H × D): 245 × 440 × 500 mm (9.6 × 17.3 × 19.7″)

1. Installation
• Place the Renfert SILENT Compact CAM Extraction Unit on a stable, dry, and well-ventilated surface near the CAM milling system.
• Ensure there is adequate space around the unit for proper airflow and maintenance.

2. Electrical Connection
• Connect the extraction unit to a compatible power supply according to the manufacturer’s voltage requirements.
• Ensure the power cable and socket are properly grounded before switching on the unit.

3. Connect to CAM System
• Attach the suction hose securely between the extraction unit and the dental CAM milling machine.
• Ensure the connection is tight to allow efficient dust and particle extraction during milling.

4. Switching On
• Turn on the main power switch on the extraction unit.
• Confirm the unit is operating and generating proper suction airflow.

5. During Operation
• Start the CAM milling process.
The extraction unit will collect dust, zirconia particles, and milling debris, maintaining a clean and safe working environment.

6. Filter Maintenance
• Regularly check and clean the dust container and filters to maintain strong suction performance.
• Replace filters when required according to the maintenance schedule.

7. Switching Off
• After completing the milling process, turn off the extraction unit using the power switch.
• Empty the dust collection container if necessary before the next use.

SILENT  Dental CAM Systems

1-year warranty from the date of purchase.
