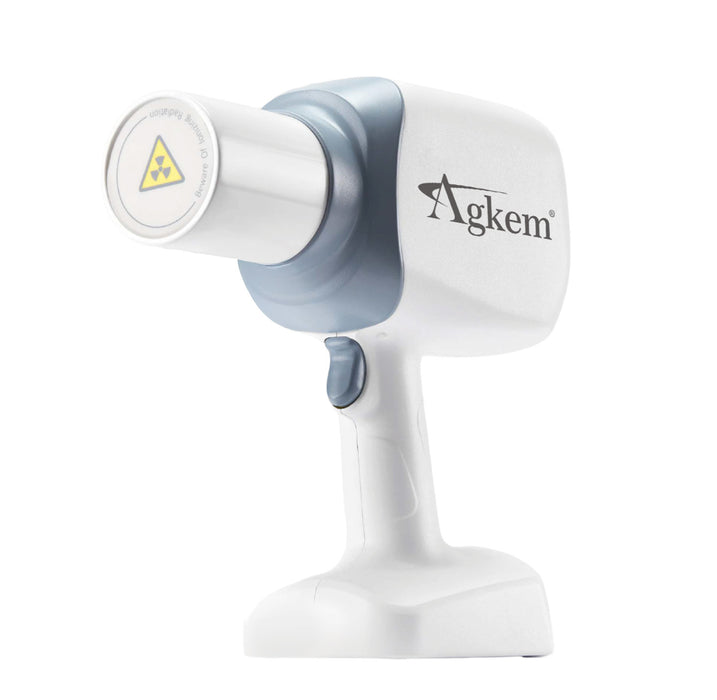

Portable Dental X-Ray Machine Gun-Type

The Agkem Handheld Portable X-Ray stands out as a cutting-edge imaging solution tailored for dental experts. Its ergonomic, lightweight build provides top-tier diagnostic images with ease of use for operators and patients alike. Equipped with smart angle optimization, long-lasting battery, and user-friendly controls, it excels in mobile dentistry and rapid diagnostics

• Model: POC-T22 (Gun-Type Portable Dental X-Ray)
• Tube Voltage: 70 kV ± 10 %
• Tube Current: 2 mA / 220 V
• Input Voltage: 110 V – 240 V
• Frequency: 50 Hz – 60 Hz
• Anode Angle: 12.5°
• Focal Spot / Focus: 0.4 mm
• Exposure Time Range: 0.4 s – 2.0 s
• Leak Radiation Emissivity: ≤ 0.25 mGy/h at 1 m (low-radiation safety)
• Machine Weight: Approximately 1.7 kg (lightweight and portable)
• Operating Humidity Range: 30 %RH – 75 %RH

Unboxing and Setup
• Carefully unpack the Portable Dental X-Ray Gun-Type Machine and all included accessories.
• Check that all components are present, including the battery, charger, and protective cone.
• Place the device on a clean and stable surface.
• Insert the battery into the device and ensure it is properly connected.
• Turn ON the power switch and check the display panel.

Prepare the Patient
• Ask the patient to sit comfortably in the dental chair.
• Place a lead apron on the patient for radiation protection.
• Insert the dental X-ray sensor or film holder into the patient’s mouth in the correct position.

Set the Exposure Parameters

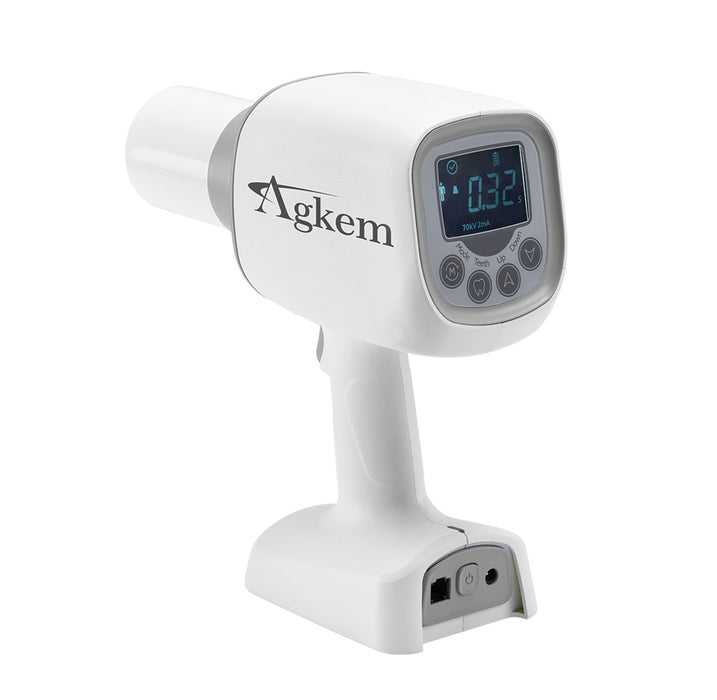

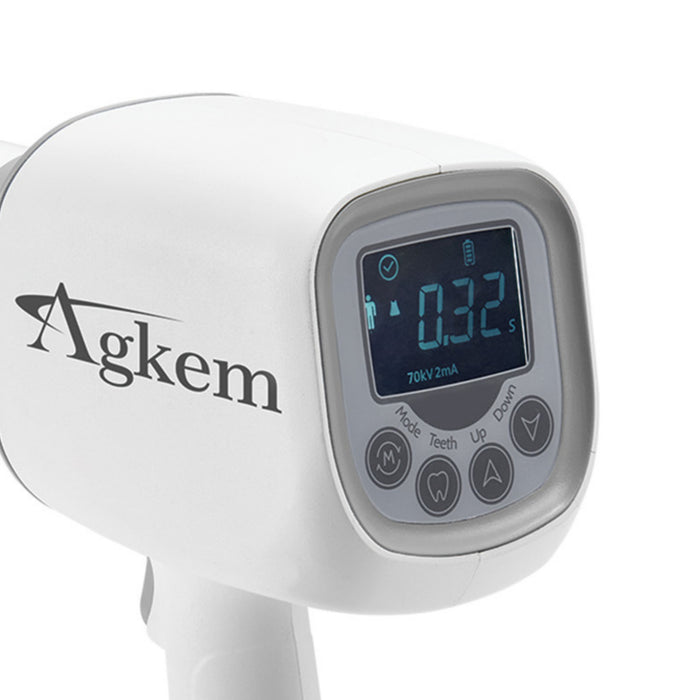

• Turn on the device and access the control panel or display screen.
• Select the appropriate exposure mode depending on the tooth type:
• Incisor
• Premolar
• Molar
• Adjust settings such as:
• Exposure time
• Patient type (adult or child) if available.

Position the X-Ray Machine
• Hold the gun-type X-ray machine firmly by the handle.
• Align the X-ray cone with the tooth area being examined.
• Keep the cone parallel to the sensor or film for accurate imaging.
• Maintain the recommended distance between the cone and patient’s face.

Take the X-Ray Image
• Ensure everyone in the area is at a safe distance or wearing protective equipment.
• Press the exposure button to take the X-ray.
• The machine will emit radiation for the preset exposure time.

Review the Image
• Remove the sensor or film from the patient’s mouth.
• View the image on the dental imaging software or X-ray film processor.
• Check the image quality and retake if necessary.

After Use
• Turn OFF the X-ray machine after completing the imaging procedure.
• Clean the device surface and cone with a medical disinfectant.
• Store the device in a safe, dry place.

Charging and Maintenance
• Recharge the battery using the provided charger when the battery level is low.
• Regularly inspect the device for damage or loose components.
• Keep the device clean and protected from moisture.

Safety Precautions
• Always use lead aprons and protective barriers during X-ray exposure.
• Avoid unnecessary radiation exposure.
• Only trained dental professionals should operate the device.
• Follow local radiation safety guidelines.

1 × Portable X-Ray Unit (Gun-Type)
1 × Extension Cone
1 × Carrying Bag / Case
1 × Power Adapter
1 × Power Cable

2-year warranty from the date of purchase.
