SAESHIN E-Cube Endo Black With Reciprocating Function

SAESHIN E-Cube Endo Black is a state-of-the-art endodontic motor designed for precision root canal procedures. Equipped with reciprocative function and adjustable torque control from 0.6 to 5.2 N·cm, it ensures safe and efficient shaping of root canals. Its compact and ergonomic design, lightweight handpiece, and micro-motor provide superior control and stability. The motor supports multiple gear ratios (1:1, 4:1, 10:1, 16:1, 20:1) to adapt to a wide range of clinical needs. With a foot on/off switch, the E-Cube Endo Black allows seamless operation while maintaining consistent torque, making it ideal for professional endodontic applications.

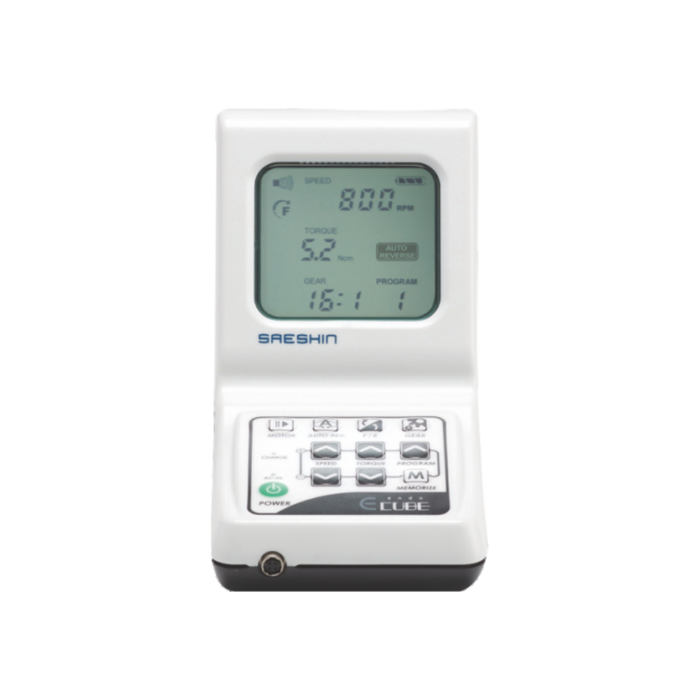

Control Box
• Input Voltage: DC 20V, 1.5A
• Output Voltage: DC 6V
• Dimensions (W × D × H): 110 × 196 × 139 mm
• Weight: 582 g
• Gear Ratios: 1:1, 4:1, 10:1, 16:1, 20:1
• Torque Range: 0.6–5.2 N•cm
Handpiece
• Weight: 35 g
• RPM: 812
• Torque: 5.2 N•cm
• Design: Lightweight, ergonomic, and compact
Micro Motor EP
• Input: DC 6V
• Weight: 116 g
Other Features
• Foot On/Off Switch
• Stable Torque Supply
• Reciprocative Function for safe canal preparation

1. Power Connection
• Ensure the device is turned off before connecting the power supply.
• Connect the AC adaptor to the control unit.
• Verify that the AC IN indicator lamp lights up, confirming the power supply is connected correctly.

2. Preset Memory Setup
• Select the desired speed and torque settings using the control panel.
• Press the MEMORIZE (MEM) key to store the selected parameters.
• The device allows you to save up to 9 preset programs for different endodontic procedures.

3. Power On / Power Off
• Press and hold the POWER key for more than 1 second to turn the device on.
• Briefly press the POWER key again to stop the motor handpiece.
• For intermittent operation, hold the POWER key while the handpiece is running and release it to stop.

4. Speed and Torque Adjustment
• Use the SPEED key to adjust the rotation speed as required for the procedure.
• Adjust the torque limit value using the TORQUE key to ensure safe and controlled operation.

5. Rotational Direction Selection
• Press the REVERSE key to select the desired rotational direction.
• Each press toggles between:
• Forward rotation
• Reverse rotation

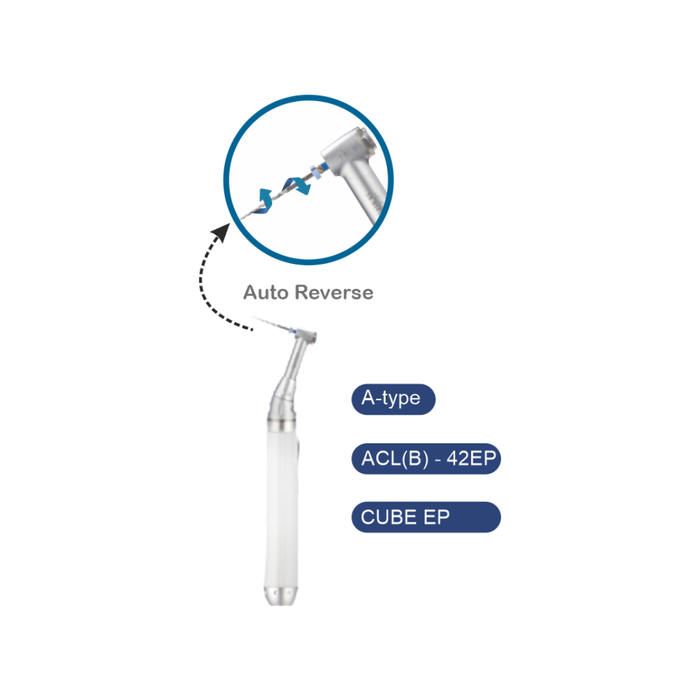

6. Reciprocating / Auto Reverse Function
• Press the AUTO REVERSE key to activate or change the mode.
• The device cycles between:
• AUTO REVERSE AUTO STOP – The motor reverses automatically and stops when torque limit is reached.
• AUTO REVERSE OFF – Normal operation without automatic reversal.

7. Connecting the Contra-Angle Head
• Align the positioning pins of the contra-angle head with the slots on the motor handpiece.
• Push the head into the handpiece until a click sound confirms secure attachment.
• To remove, pull the head straight out axially.

8. Calibration Procedure
• Calibration helps stabilize speed and torque accuracy.
Steps:
• Lubricate the contra-angle head.
• Turn off the power.
• Connect the AC adaptor.
• Turn the device on.
• Press and hold both SPEED buttons simultaneously for more than 1 second to start calibration.

9. Battery Refresh (Ni-MH Batteries)
• Battery refresh helps eliminate memory effect and restore battery performance.
Steps:
• Turn off the device.
• Connect the AC adaptor.
• Press and hold the POWER key while pressing the REVERSE key to start the battery refresh function.

10. Cleaning and Maintenance
• Turn off the device and disconnect it from the power supply.
• Clean and disinfect the contra-angle head and accessories according to sterilization protocols.
• Wipe the control unit and display with a soft, slightly damp cloth.
• Store the device in a clean, dry, and well-ventilated area.

1 × SAESHIN E-Cube Endo Black Control Box

1 × Handpiece

1 × Micro Motor EP

1 × Foot Pedal / Foot Switch

1 × Charging Cable / Adapter

1-year warranty from the date of purchase.
