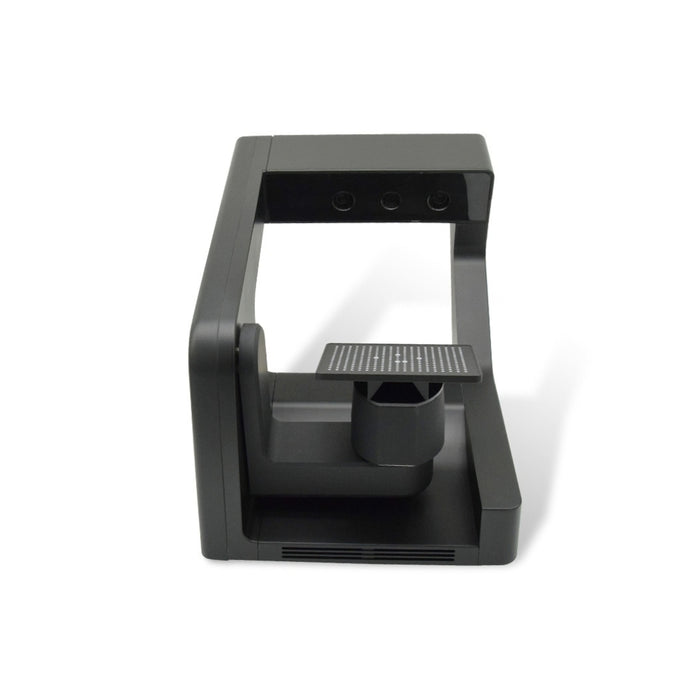

CEDU QSCAN PRO S LAB SCANNER

The CEDU QSCAN PRO S LAB SCANNER is a professional laboratory scanning solution designed for accurate, efficient, and reliable digitization of laboratory samples and diagnostic materials. It helps laboratories streamline the scanning process, improve workflow efficiency, and maintain high-quality digital records for analysis, documentation, and reporting.

Designed with a focus on precision, consistency, and ease of operation, the QSCAN PRO S is suitable for laboratories requiring dependable scanning performance and organized digital data management. Its professional design supports routine laboratory workflows while helping reduce manual handling and improve productivity.

Key Specification Details
Camera Resolution 3.7 MP × 2
Scan Area 100 × 100 × 75 mm
Scanning Principle Three-dimensional Structured Light
Accuracy (ISO 12836) 8 μm
Single Jaw Scan Speed Up to 11 seconds*
Light Source LED Blue Light
Dimensions 37 × 35 × 45 cm
Weight 5 kg
Connection USB 3.0 Type-B
Scanning Capability Model, die, impression, occlusion and articulator scanning
Color/Texture Scanning Supported
Output Formats STL, PLY, OBJ
Application Dental Laboratory CAD/CAM Workflow

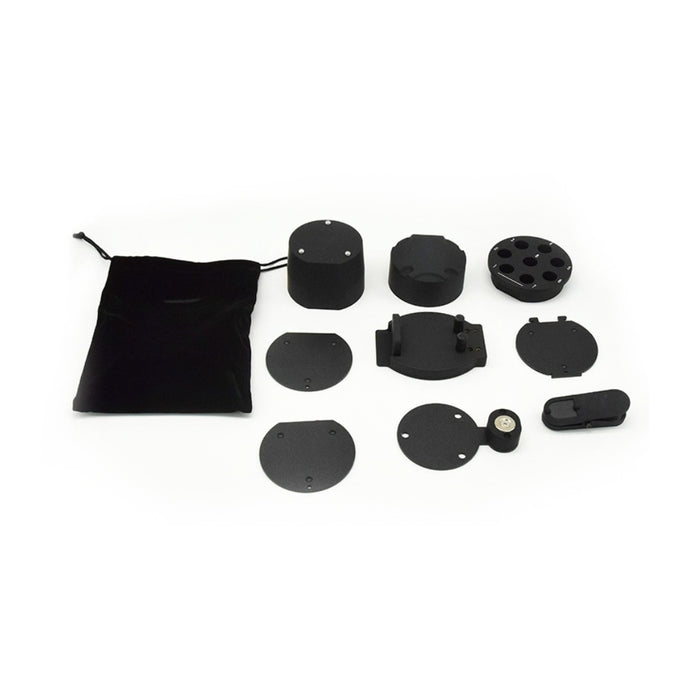

1- Calibration board
2- Base block
3- Die - tray
4- Full jaw fixture base
5- Fixture base x 2
6- All in one fixture base
7- BluTack Plasticine
8- Power cord cable
9- Dental mould fixture
10- Jaw transfer block
11- Impression clamp
12- Impression fixture
13- Articulator plate
14- Software installation package USB drive
15- USB cable
16- Power adapter

2year warranty
