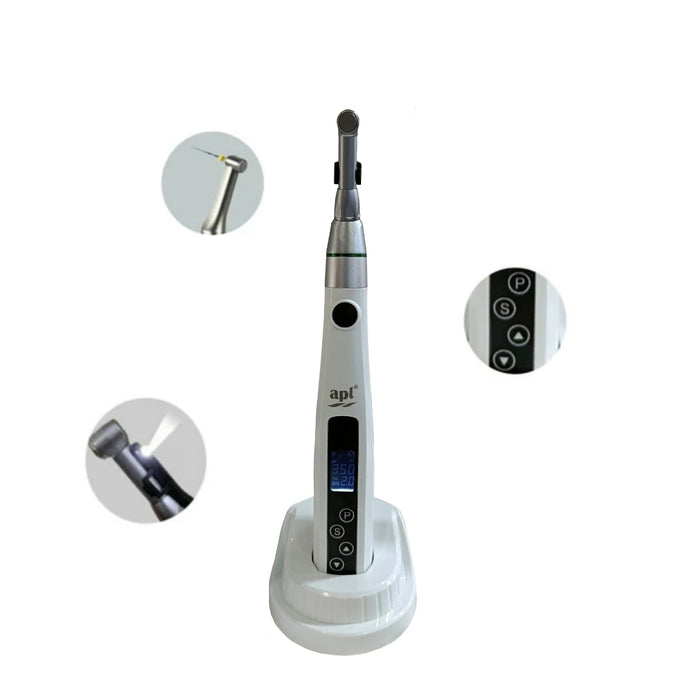

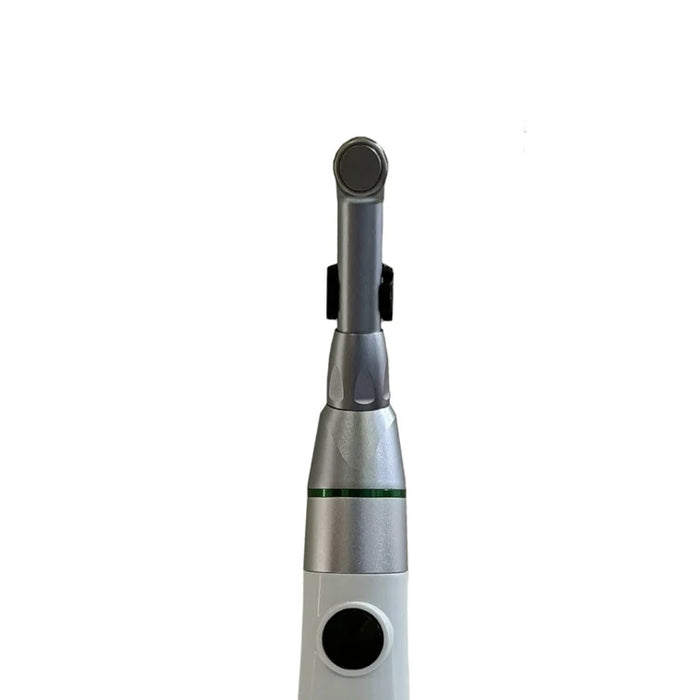

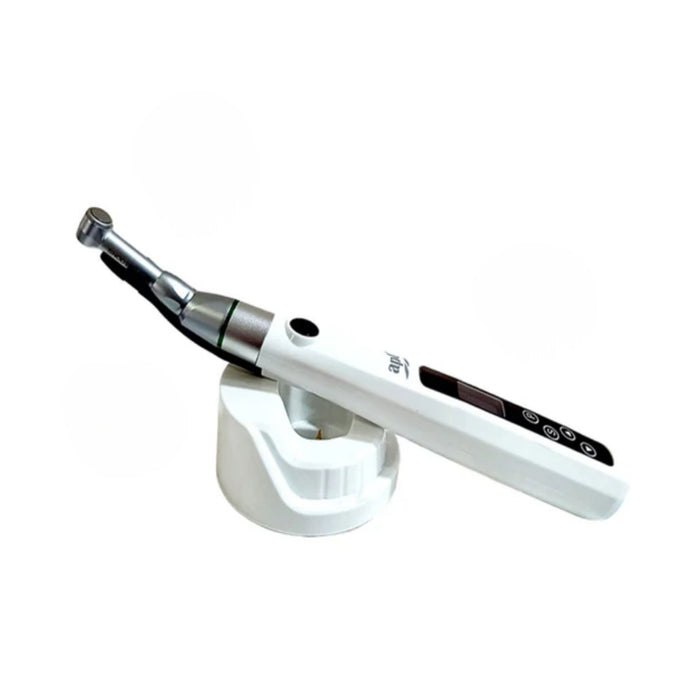

Apl Y-Smart Max Endo Motor With Led Light

APL Y-SMART MAX Endo Motor is a cordless, ergonomic, and high-performance endodontic device designed for precision and convenience during root canal procedures. Its compact structure, LED illumination, and intuitive interface ensure smooth, efficient, and accurate operation.

• Host Voltage: 3.7V / 800mAh
• Input Voltage: AC 100–240V, 50/60Hz
• Output Voltage: DC 5V
• Output Current: 1A
• Torque Range: 0.6 Ncm – 4.0 Ncm
• Rotation Speed: 120 rpm – 600 rpm

1. Power On / Off
• Press and hold the Power button for more than 1 second to turn the device ON. The LCD display will light up.
• Press and hold the Power button again for more than 1 second to turn the device OFF.

2. Motor Operation
• Press the Motor ON/OFF button to start the rotation of the file in the contra-angle handpiece.
• Press the button again to stop the file rotation.

3. Select Parameters
• Press the Item Select Button (S) to switch between speed, torque, and operating modes.
• These parameters can be adjusted even while the motor is running.

4. Program Selection
• Press the Program Shift Button (P) to select from 7 preset working programs according to the treatment requirement.

5. Adjust Settings
• Use the Upward (+) and Downward (–) buttons to increase or decrease the selected parameter when it is flashing on the display.
• While the file is rotating, these buttons can also be used to adjust the speed (SP).

6. Reset Function
• In standby mode, attach the contra-angle handpiece without applying load.
• When “CRL” appears on the screen, press and hold the Item Select Button (S), then press the Motor Switch until a “beep” sound is heard.
• The device will reset automatically and return to the lock screen.

7. Operation
• Once settings are configured, use the motor with the appropriate endo files and LED illumination for improved visibility during procedures.

8. After Use
• Turn off the device, remove the contra-angle handpiece, and clean and sterilize components according to standard dental protocols.

1 x Apl Y-Smart Max Endo Motor

6 Months warranty from the date of purchase.
