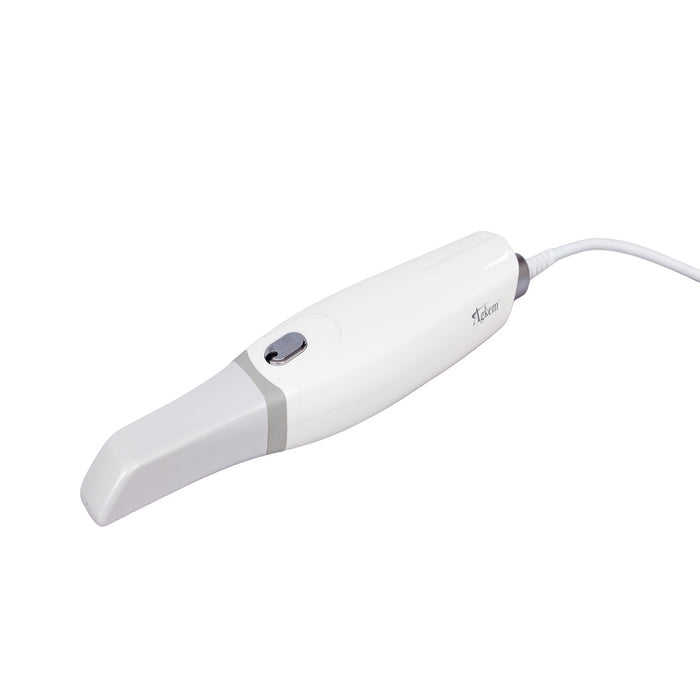

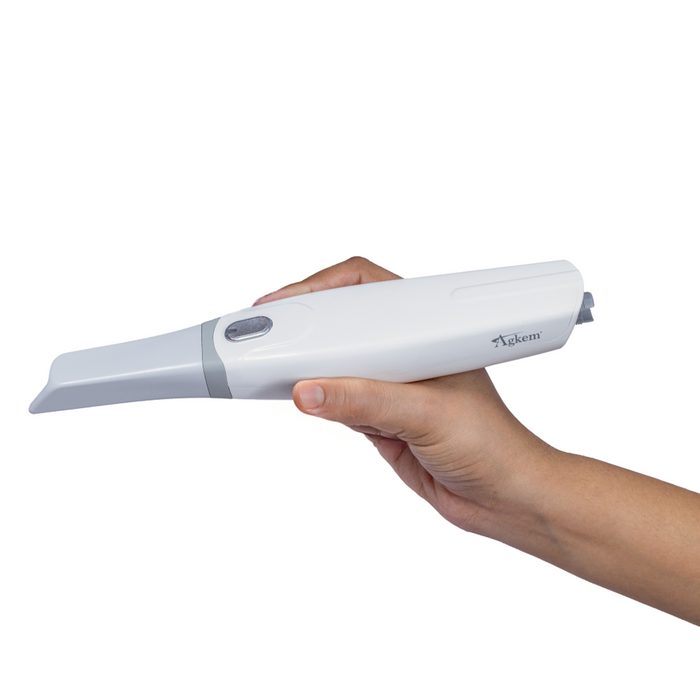

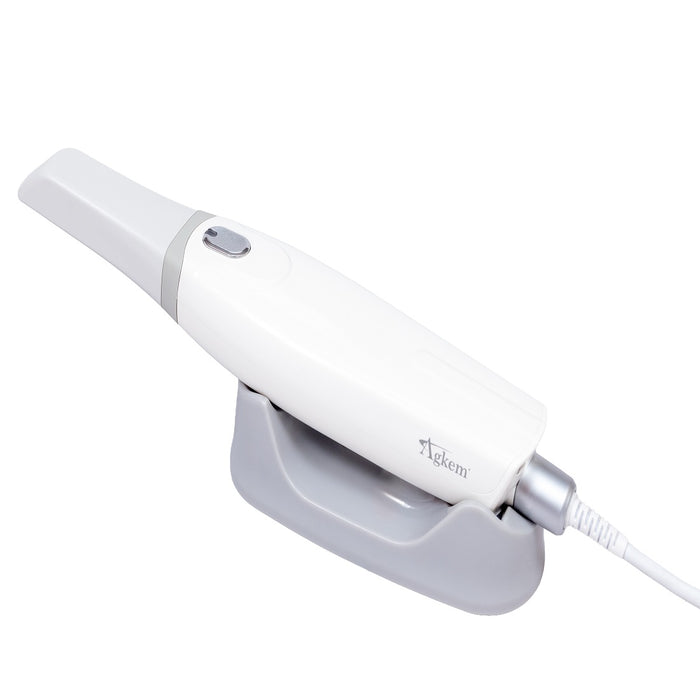

Agkem 3d Intraoral Scanner V3 Pro

Agkem 3D Intraoral Scanner is a sophisticated digital dental imaging device designed for fast, accurate, and comfortable 3D scanning of patients’ teeth and gums. With ultra-fine capture, real-time visualization, and open-system compatibility, this scanner empowers dental clinics and labs to streamline workflows, improve patient comfort, and deliver high-quality prosthetics, aligners, and restorative solutions.

• Accuracy: ~20 µm (0.02 mm) nominal.
• Scanning Distance (Tip): 0-17 mm approx.
• Weight (Scanner Handpiece): ~190-210 g.
• Exported File Formats: STL, PLY, OBJ.
• Technology / Image Mode: Continuous video capture, real-color scanning.
• System Type: Open-system scanner (compatible with third-party CAD/CAM)

1. System Connection
• Connect the Agkem 3D Intraoral Scanner to your computer using the provided USB cable.
• Ensure the scanning software is installed and running on the system.

2. Software Setup
• Open the scanning software and log in or create a patient profile.
• Select the appropriate scan mode for the procedure.

3. Scanner Calibration
• If required, perform scanner calibration using the calibration tool and follow the on-screen instructions.

4. Start Scanning
• Place the scanner tip inside the patient’s mouth.
• Move the scanner smoothly along the teeth and gum line to capture accurate 3D images.

5. Review the Scan
• Check the 3D model on the screen for missing or unclear areas.
• Rescan specific sections if necessary for complete data.

6. Save and Export
• Save the scan file in the software system.
• Export or send the digital impression to the dental lab or CAD software for further processing.

7. Cleaning and Storage
• After use, clean the scanner tip according to hygiene guidelines.
• Store the scanner safely in a clean and dry location.

1 x Intraoral Scanner

1-year warranty from the date of purchase.
