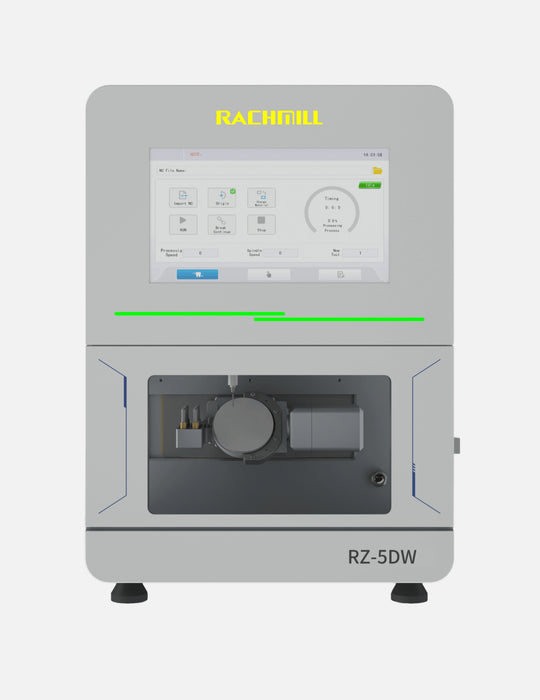

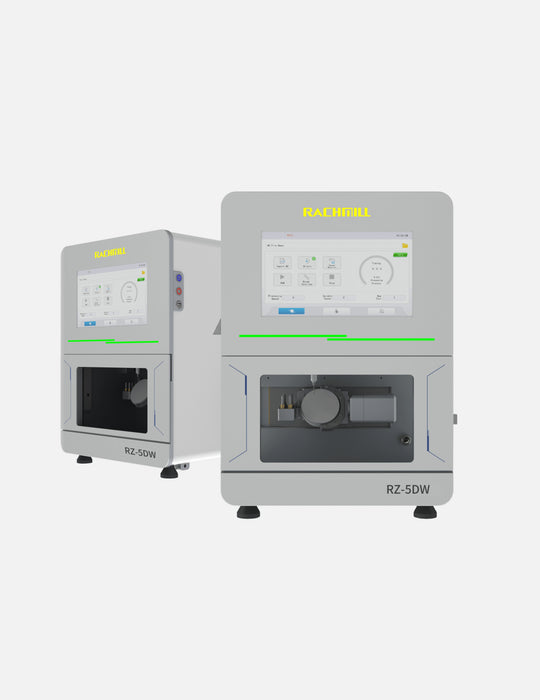

5 Axis Wet & Dry Milling Machine Rz – 5DW

5-Axis Dry & Wet Dual- Purpose Dental Milling Machine

Spindle power-2.5kw

3μm accuracy repeatabilityMicron-level precision control in the machining area
Highly accurate C-shaped holder designed for secure positioning Supports 98 mm
diameter discs Compatible with 10–40 mm thickness materials Equipped with
high-precision holders for glass ceramic blocks
B-Axis works between -30°~92° to meet customized milling need
The Assembly Accuracy of each axis maintains precision within 0.01 mm

Dimensions (LxWxH): 550x530x750mm
Weight: Approximately 130kg
Input Voltage: Single-Phase AC 220V
Spindle power: 2.5kw
Axis quantity: 5
Rotation Range: +-360° / -30~92°
Milling Mode: Dry & Wet
Milling Max speed: 60,000rpm
Precision <0.01mm
Bur Capacity: 14
Motor Type Servo Motor
Spindle Cooling: Water Cooling
Processing Materials: Zirconia,Wax, PMMA ,Titanium Disc, Glass Ceramic, Resin,
Pre-milled Titanium Column

Avg Milling Times: Zirconia：8mins Wax：3mins
Air pressure Range 0.4~0.8 MPa
Holder C- Shaped; holding 3 glass ceramic blocks; holding 3 pre-milled Titanium coloumn

1- Inner Hexagon Spanner
2- Collet Chuck Remover
3- Milling Machine
4- Oil-water Separator
5- Spare Screws
6- Collet Chuck Cleaning Brush
7- Brush
8- Holder for Glass Ceramic Block
9- Holder for Titanium Column
10- 8P Pipe Tee
11- Power Cable
12- Water Pump Cable
13- Wax Blank
14- Test Alum. Column
15- Testcube
16- Milling Bur
17- Compressed Air hose
18- Water Hose
19- Cooling Water Tank Installation
20- U Disk
21- Drain Hose
22- Open-ended Spanner, Fastener
23- Water Chiller
24- Signal Cable for Water Chiller
25- Quality Certificate

1 year
