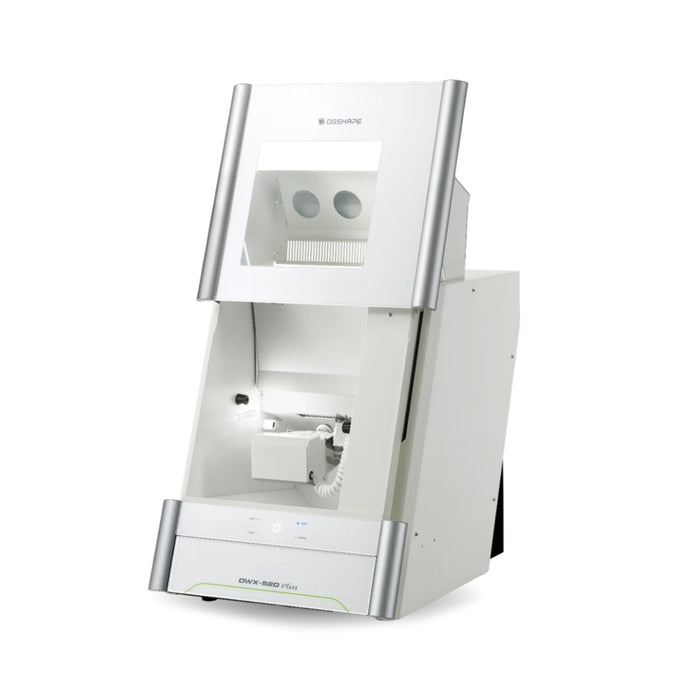

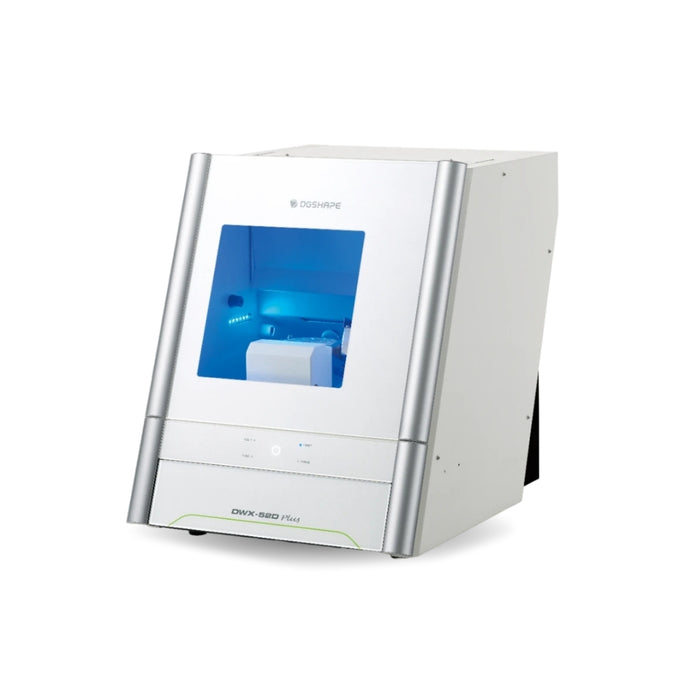

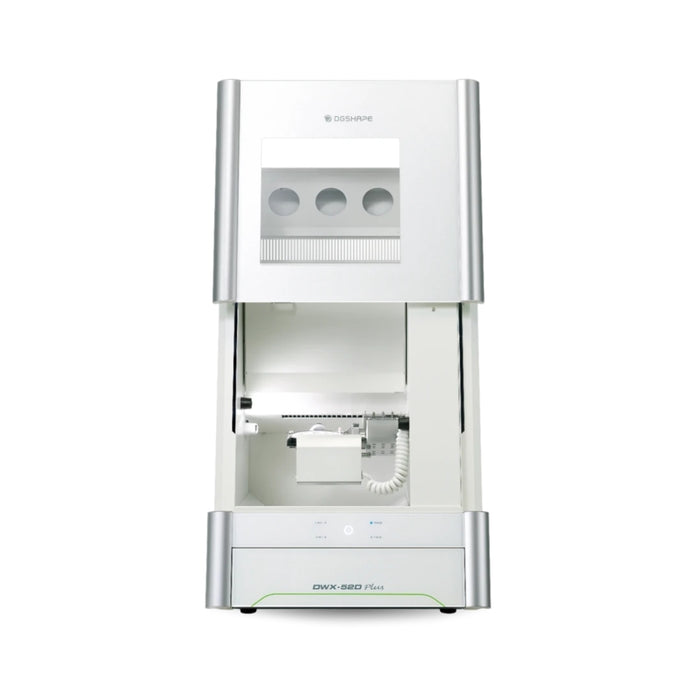

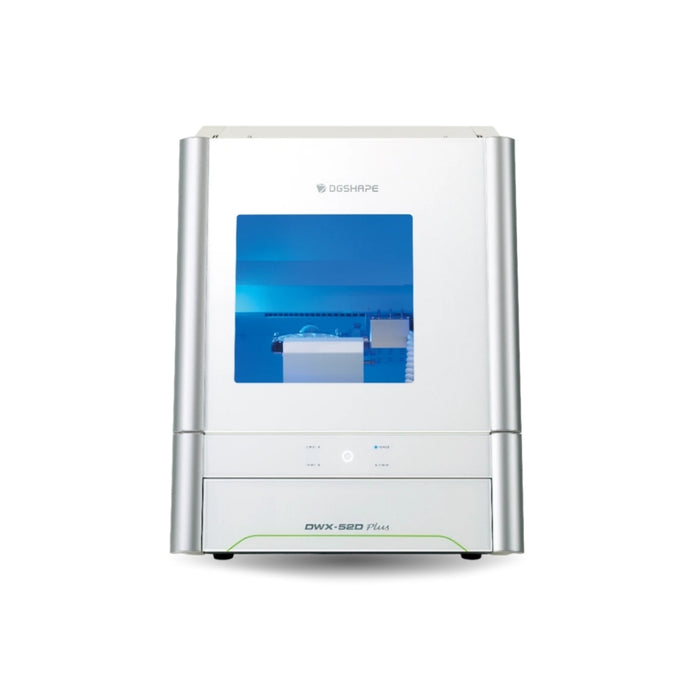

DGSHAPE DWX-52D Plus 5-Axis Dry Dental Milling Machine

DGSHAPE DWX-52D Plus 5-Axis Dry Dental Milling Machine engineered for high-precision, high-efficiency milling of a wide range of dental materials. Featuring an upgraded spindle with 1.9× greater gripping power, this advanced system enhances milling accuracy, stability, and material versatility. Designed for modern dental CAD/CAM production, it supports zirconia, PMMA, PEEK, wax, composite resin, chrome cobalt, and more. Equipped with a 15-station Automatic Tool Changer and Intelligent Tool Control (ITC), the DWX-52D Plus ensures seamless, uninterrupted milling with automatic tool monitoring, breakage prevention, and optimized workflow. Its intuitive design, rigid construction, and reliable performance make it an industry-leading solution for dental labs seeking superior speed, reliability, and milling quality.

Milling Capability
• Cuttable Materials: Zirconia, Wax, PMMA, Composite Resin, PEEK, Gypsum, Glass Fiber Reinforced Resin, Chrome Cobalt (pre-sintered)
• Loadable Disc Size:
o Outer Diameter: 98.5 mm
o Max Height: 60 mm
o Step: 10 mm
• Pin-type Material Diameter: 6 mm
• Max Workpiece Weight: 850 g
• Adapters Capacity: 6 adapters
Performance
• Operating Speed (XYZ): 6–1,800 mm/min
• Spindle Motor: Brushless DC
• Spindle Speed: 6,000–30,000 rpm
Rotary Axis Travel
• A-Axis: ±360°
• B-Axis: ±30°
Tool System
• Bur Capacity: 15
• Bur Shank Diameter: 4 mm
• Bur Length: 40–55 mm
Air Requirements
• Compatible Pressure: 0.05 / 0.2 MPa (automatic switching)
Connectivity & Software
• Interface: USB
• Command Set: RML-1, NC Code
• OS Compatibility: Windows 7/8/8.1/10 (32/64-bit)
• Includes: Dedicated Roland USB cable
Electrical
• Power Requirement: AC 100–240V ±10%, 50/60Hz, 2.0A
• Power Consumption: Approx. 200 W
Noise Level
• During Operation: ≤70 dB(A) (non-cutting)
• Standby: ≤45 dB(A)
Dimensions & Weight
• Width: 495 mm (19.5 in)
• Depth: 660 mm (26.0 in)
• Height: 600 mm (23.6 in)
• Weight: 67 kg (147.7 lbs)
Installation Environment
• Altitude: Up to 2,000 m
• Temperature: 5–40°C (41–104°F)
• Humidity: 35–80% (non-condensing)
• Pollution Degree: 2
• Overvoltage Protection:
o Short-term: 1440 V
o Long-term: 490 V
Included Items
• Power cord + plug adapter
• USB cable (original)
• Manuals & Roland software package CD
• Detection pin
• Automatic correction jig
• Pin-type material adapter
• Hexagonal driver
• Spanner
• Milling bur holders
• Bur positioner
• Dust collection hoses & adapter
• Regulator
• Cleaning tools
• Option adapter labels
• Material adapters
• Material adapter rack

1. Design Preparation
• Create or import the dental prosthetic design using compatible CAD software such as exocad or 3Shape.
• Ensure the design is finalized and ready for milling.

2. Export the Design File
• Export the completed design in STL format and import it into compatible CAM nesting software like WorkNC, Hyperdent, or Millbox.

3. Toolpath Creation
• Use the CAM software to generate and review the milling toolpaths.
• Verify that the cutting tools, material type, and milling parameters are correctly set.

4. Load the Milling Program
• Transfer the prepared toolpath file to the Roland DWX-52D Plus milling machine using the machine interface or connected computer system.

5. Machine Initialization
• Power on the milling machine and run the automatic homing and calibration process to ensure all axes and tools are properly aligned.

6. Start the Milling Process
• Begin the 5-axis milling operation from the control interface.
• Monitor the machine to ensure stable cutting performance and proper material engagement.

7. Post-Milling Procedure
• Once milling is completed, carefully remove the finished dental prosthetic components.
• Clean the milling chamber, tools, and workspace to prepare the machine for the next operation.

DGSHAPE DWX-52D Plus 5-Axis Dry Dental Milling Machine

1-year warranty from the date of purchase.
