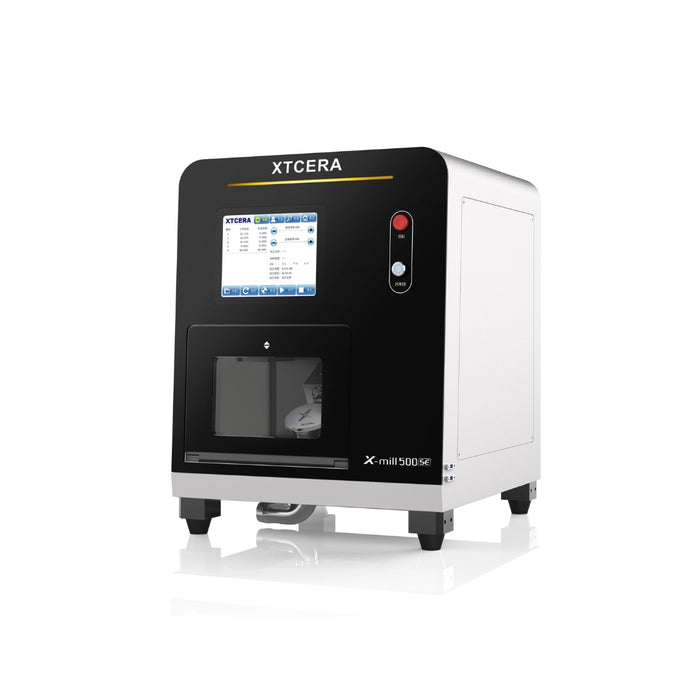

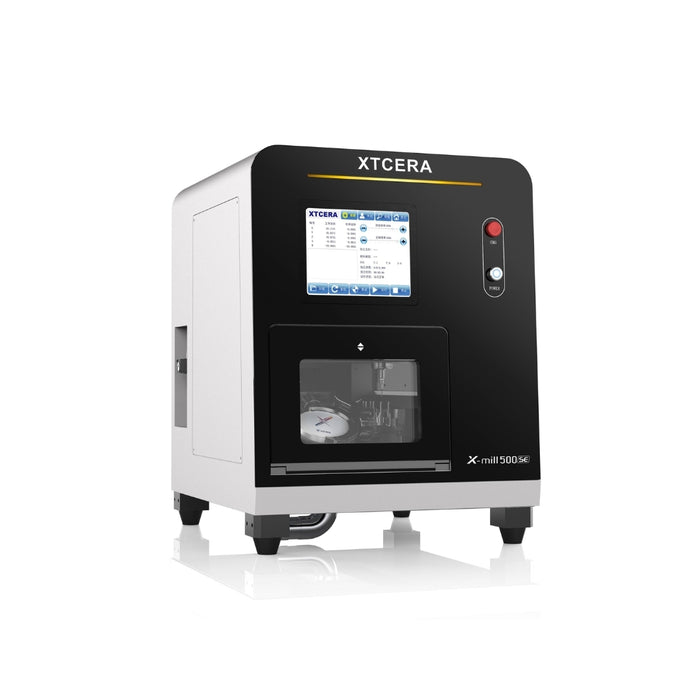

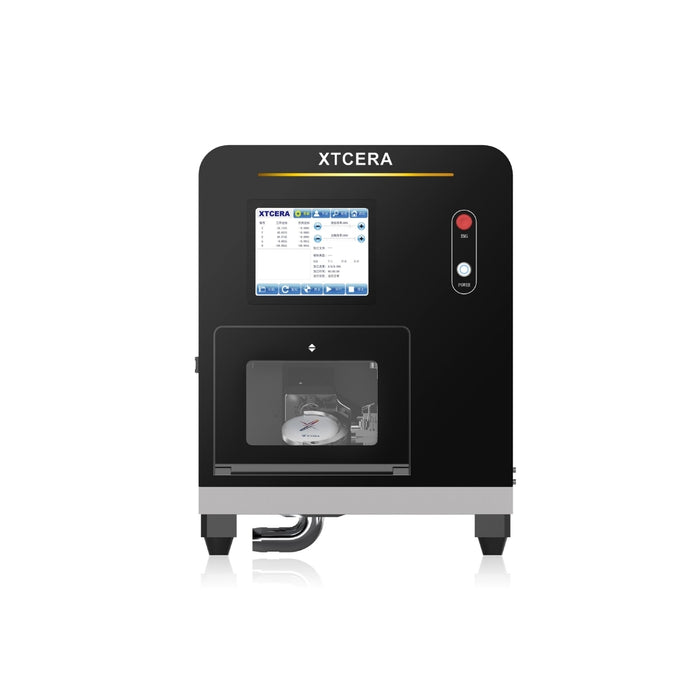

Xtcera Xmill 500 SE Dental Milling Machine

Xtcera Xmill 500 SE is a compact, lightweight, and high-precision 5-axis dental milling machine designed for modern digital dentistry. Its advanced harmonic drive technology ensures exceptional rotational accuracy, allowing highly detailed restorations with smooth surface quality. The ±30° A-axis tilt and full 360° B-axis rotation provide optimal machining angles for complex restorations.

Designed for efficiency and versatility, it supports a wide range of materials including Zirconia, PMMA, Wax, PEEK, and soft metals. Equipped with automatic tool life monitoring, tool breakage detection, and an automatic tool changer, the Xmill 500 SE ensures continuous, uninterrupted milling with reduced manual intervention.

General
• Product Name: Xtcera Xmill 500 SE Milling Machine
• Machine Type: 5-Axis Dry Milling Machine
Dimensions & Weight
• Dimensions: 585 × 530 × 695 mm
• Net Weight: 90 kg
Power & Performance
• Input Voltage: AC 220V
• Spindle Power: 0.5 kW
• Maximum Spindle Speed: 60,000 rpm
• Maximum Feeding Speed: XYZ: 3000 mm/min
Axis System
• Axis Quantity: 5
• Milling Range:
o X: 170 mm
o Y: 120 mm
o Z: 85 mm
o A-axis: ±30°
o B-axis: 360°
Milling System
• Milling Mode: Dry milling
• Bur Capacity: 6 burs
• Bur Changing: Automatic
• Cooling System: Air-cooled spindle
Material Compatibility
• Zirconia
• PMMA
• Wax
• PEEK
• Soft Metals
Average Milling Time
• Zirconia: ~10 minutes
• Wax: ~4 minutes
• PMMA / PEEK / Soft Metal: ~10 minutes

1. Initial Setup
• Install the XTCERA Xmill 500 SE Dental Milling Machine on a stable surface and connect it to a compatible computer system with the required CAD/CAM software installed.

2. Material Selection
• Select the appropriate dental material for the prosthetic restoration.
• The machine supports soft metal and various CAD/CAM milling materials used in dental laboratories.

3. Load the Material
• Insert the chosen disc or block material into the machine’s material holder and secure it properly to ensure stable and accurate milling.

4. Software Initialization
• Launch the CAD/CAM software on the connected computer and configure it to communicate with the XTCERA Xmill 500 SE milling system.

5. Design and Toolpath Creation
• Design the dental prosthetic in the CAD software according to patient specifications.
• Generate the milling toolpaths required for shaping the prosthetic.

6. Machine Calibration
• Perform the machine calibration as recommended by the manufacturer to ensure precise movement of all milling axes.

7. Tool Preparation
• Install the appropriate milling burs and tools suitable for the selected material and prosthetic design.
• Confirm proper tool alignment before starting.

8. Start the Milling Process
• Begin the milling operation through the software interface.
• The machine will follow the programmed toolpaths to mill the restoration from the selected material.

9. Monitor the Process
• Observe the milling progress through the machine interface or control software to ensure smooth operation and proper cutting.

10. Quality Inspection
• After milling is complete, remove the finished dental prosthetic and inspect it for accuracy, surface finish, and structural quality. Make any required refinements.

11. Cleaning and Maintenance
• Clean the milling chamber, tools, and material holder after each use.
• Perform routine maintenance to maintain optimal performance and longevity of the machine.

Xtcera Xmill 500 SE Dental Milling Machine

1-year warranty from the date of purchase.
