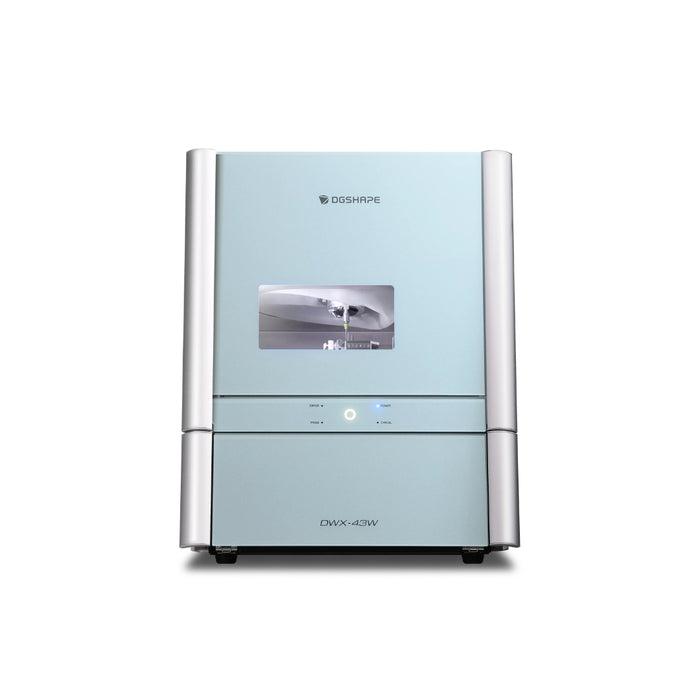

DGSHAPE DWX-43W 4-Axis Wet Dental Milling Machine

DGSHAPE DWX-43W 4-Axis Wet Dental Milling Machine is a precision wet-milling solution designed for fast, accurate, and highly detailed fabrication of glass ceramic and composite resin restorations. Engineered for dental labs and clinics, it delivers outstanding surface finish, superior marginal accuracy, and reliable reproducibility for crowns, bridges, inlays, onlays, and veneers.

• Milling Type: Wet Milling
• Axis System: 4-Axis Simultaneous
• Compatible Materials: Glass Ceramic, Composite Resin, Hybrid Ceramic
• Spindle Speed: 6,000 – 30,000 RPM
• Workpiece Size: Supports standard CAD/CAM blocks
• Tool Changer: 6-Station automatic tool changer
• Bur Shank Diameter: 4 mm
• Motor Type: High-performance spindle motor
• Interface: USB
• Supported OS: Windows 10 / 11 (64-bit)
• Power Requirement: 100 – 240 VAC, 50/60 Hz
• Cooling System: Integrated water circulation system
• Dimensions (W × D × H): 305 × 365 × 380 mm
• Weight: Approx. 31 kg
• Software Compatibility: Open CAD/CAM system compatible

1. Machine Setup
• Place the milling machine on a stable, level surface near the CAD/CAM workstation.
• Connect the power supply, computer interface, and coolant system for wet milling.
• Turn on the machine and start the milling control software.

2. Load the Material
• Open the machine cover.
• Insert the glass ceramic or composite resin block into the block holder and secure it properly.

3. Prepare the Design
• Design the dental restoration using CAD software such as exocad or 3Shape Dental System.
• Export the design file and import it into CAM software to generate the milling toolpath.

4. Tool Setup
• Install the required milling burs in the tool holder.
• Check tool calibration and ensure the coolant system is functioning properly.

5. Start the Milling Process
• Close the machine door and begin the wet milling operation from the control panel or software.
• Monitor the process to ensure smooth milling and proper coolant flow.

6. Remove the Restoration
• After milling is complete, open the chamber and carefully remove the milled restoration from the holder.

7. Cleaning and Maintenance
• Clean the milling chamber and remove water residue or debris.
• Check milling tools and refill coolant if necessary to maintain consistent milling performance.

Roland DWX-43W 4-Axis Dental Milling Machine

1-year warranty from the date of purchase.
