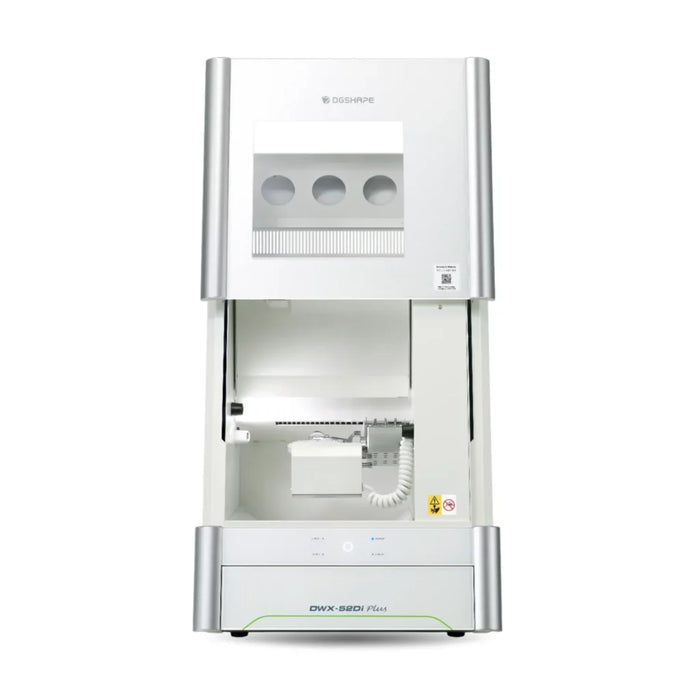

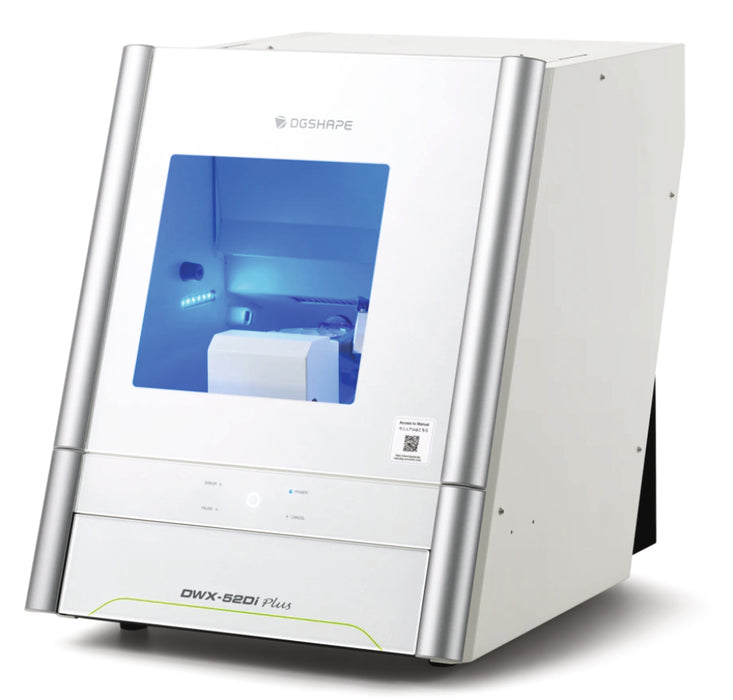

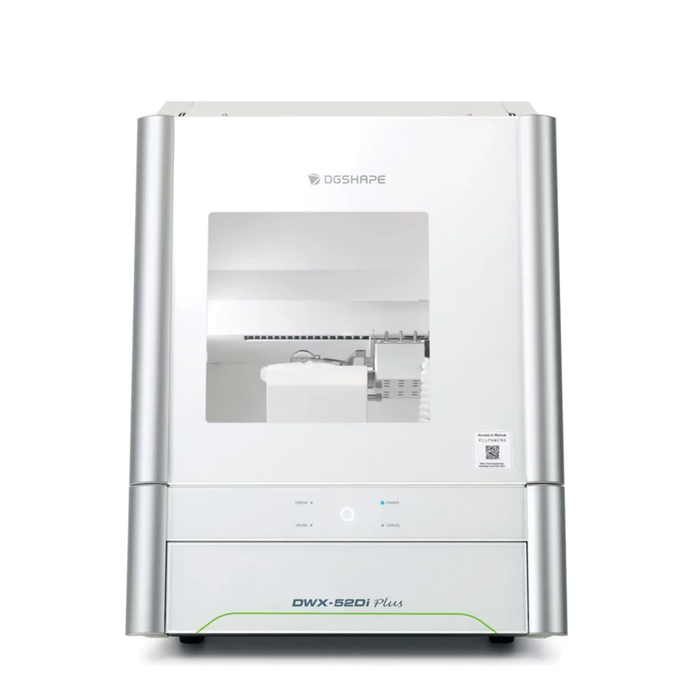

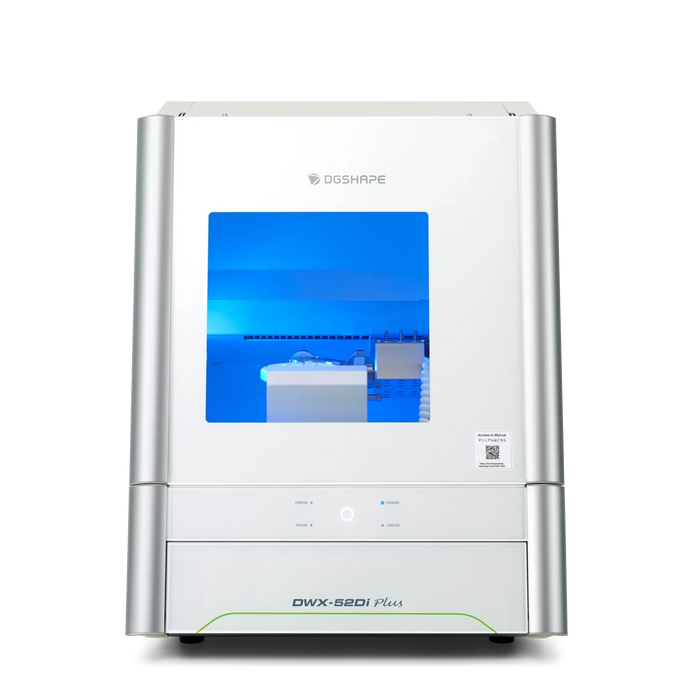

Roland DWX-52Di Plus 5-Axis Dental Milling Machine

• Upgraded spindle delivering significantly more gripping force for improved milling performance
• True 5-axis simultaneous operation enabling complex geometries and better surface finish
• Support for both C-type clamp and pin-type blocks, offering flexible workpiece compatibility
• Excellent anterior esthetics thanks to 90° milling capability
• Wide material support (zirconia, wax, PMMA, composite resin, PEEK/PEKK, gypsum, glass-fibre resin, CoCr sinter metal, polycarbonate)
• Smart workflow integration via included software (VPanel) and automated correction jigs
• Compact footprint with robust build for dental lab environment

• Supported Materials: Zirconia, Wax, PMMA, Composite resin, PEEK, PEKK, Gypsum, Glass fibre-reinforced resin, CoCr sinter metal, Polycarbonate.
• Loadable Workpiece Shape: External Diameter 98.5 mm, Max Height 60 mm, Step 10 mm, Pin-type diameter 6 mm.
• Axes Speed: XYZ: 6–1,800 mm/min (0.24–70.9 in./min)
• Spindle Motor: Brushless DC Motor
• Spindle Speed: 6,000 – 30,000 rpm
• Rotary Axes Travel: A axis ±360°, B axis ±30°
• Tool Capacity: 15 burs housed, shank diameter 4 mm, length 40-55 mm
• Air Requirement: Compressed air 0.02 to 0.2 MPa
• Interface: USB, Control command set: RML-1, NC code
• Power Requirements: 100-240 VAC ±10%, 50/60 Hz, 2.0 A. Approximate power consumption ~200 W
• Operating Noise: ≤70 dB(A) during operation (when not cutting), ≤45 dB(A) during standby
• Dimensions (W × D × H): 495 mm × 660 mm × 600 mm
• Weight: 67 kg (148 lbs)

Roland DWX-52Di Plus 5-Axis Dental Milling Machine

1 Year
